S13 Link-NS13X ECU

$1,845.00

Nissan-S13 Ecu By Link

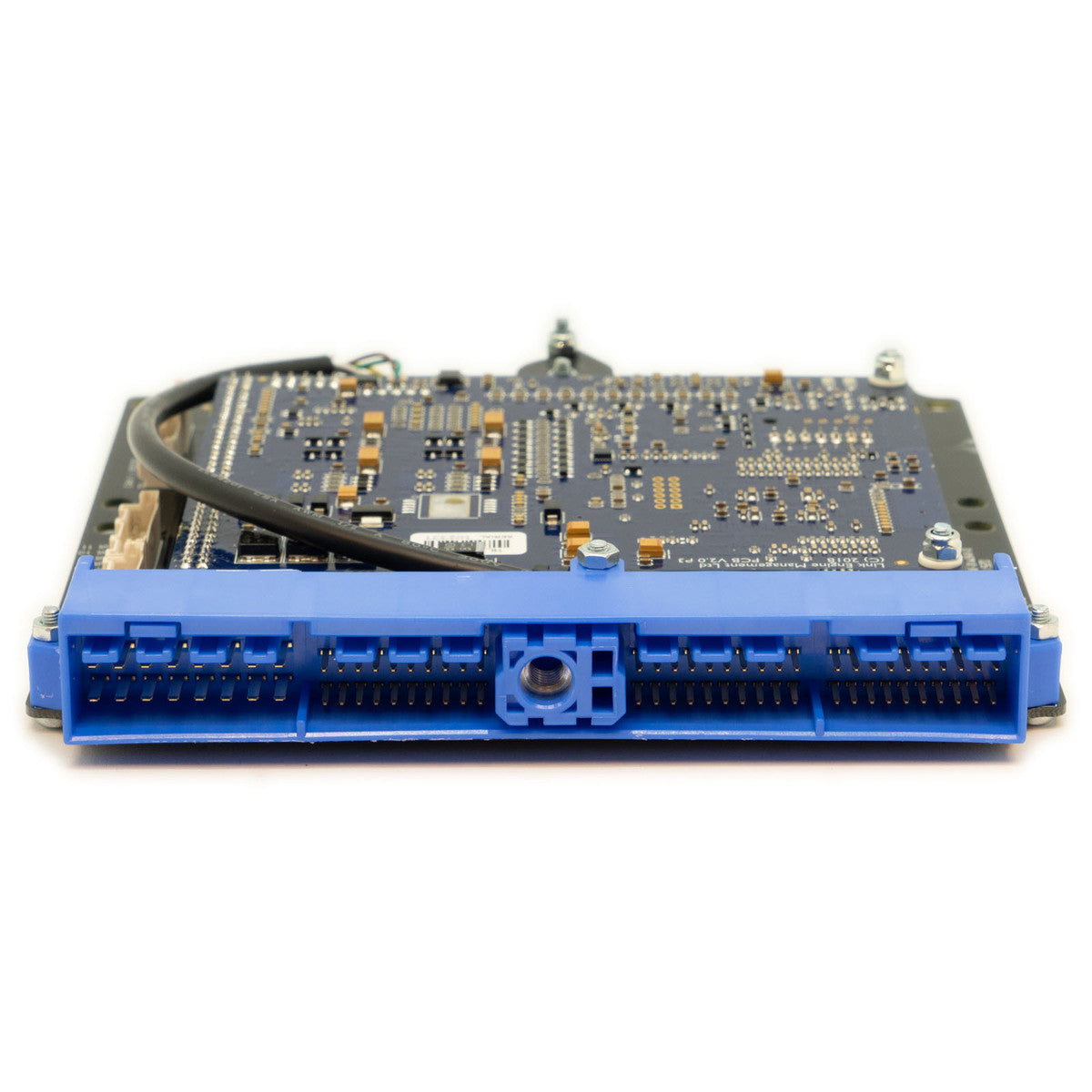

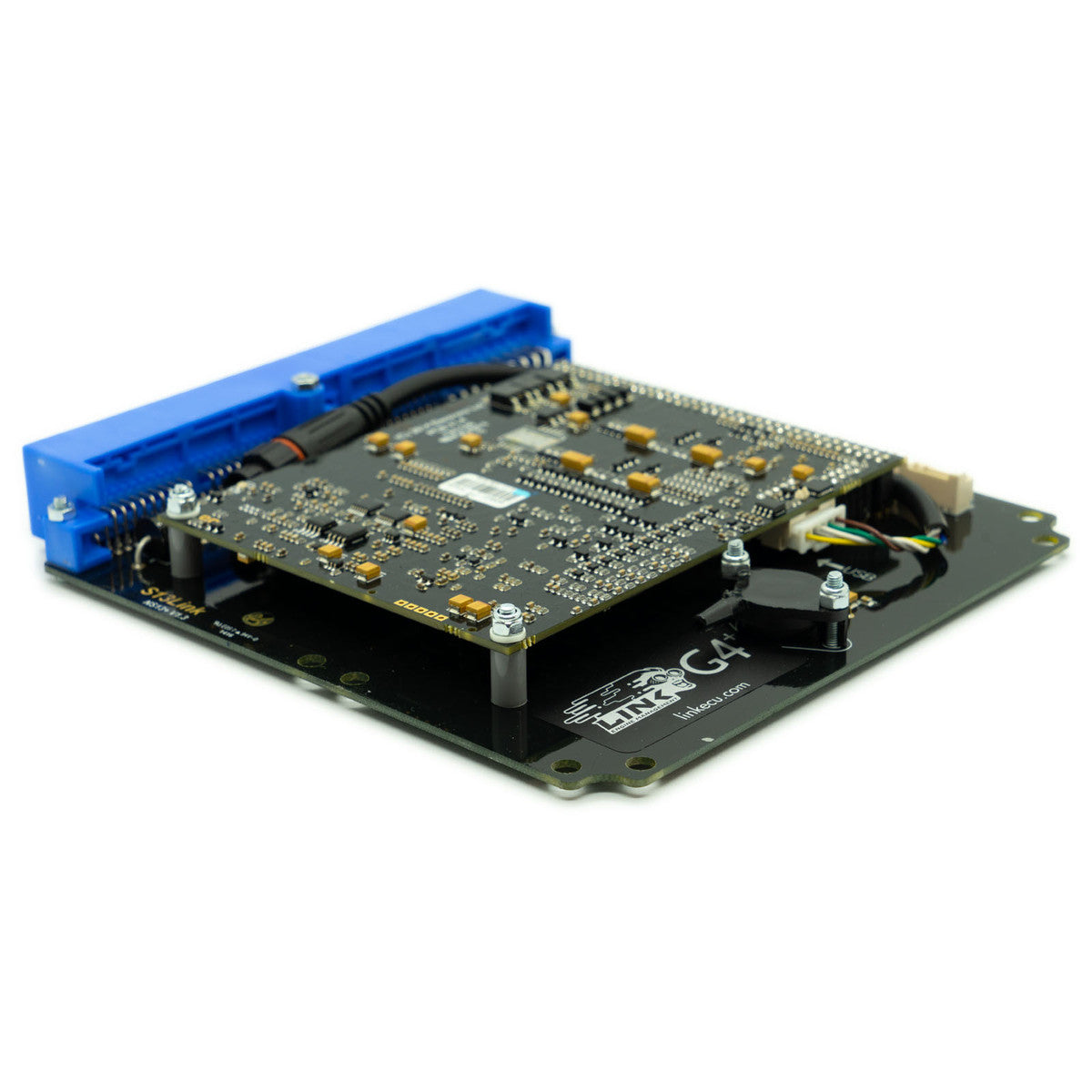

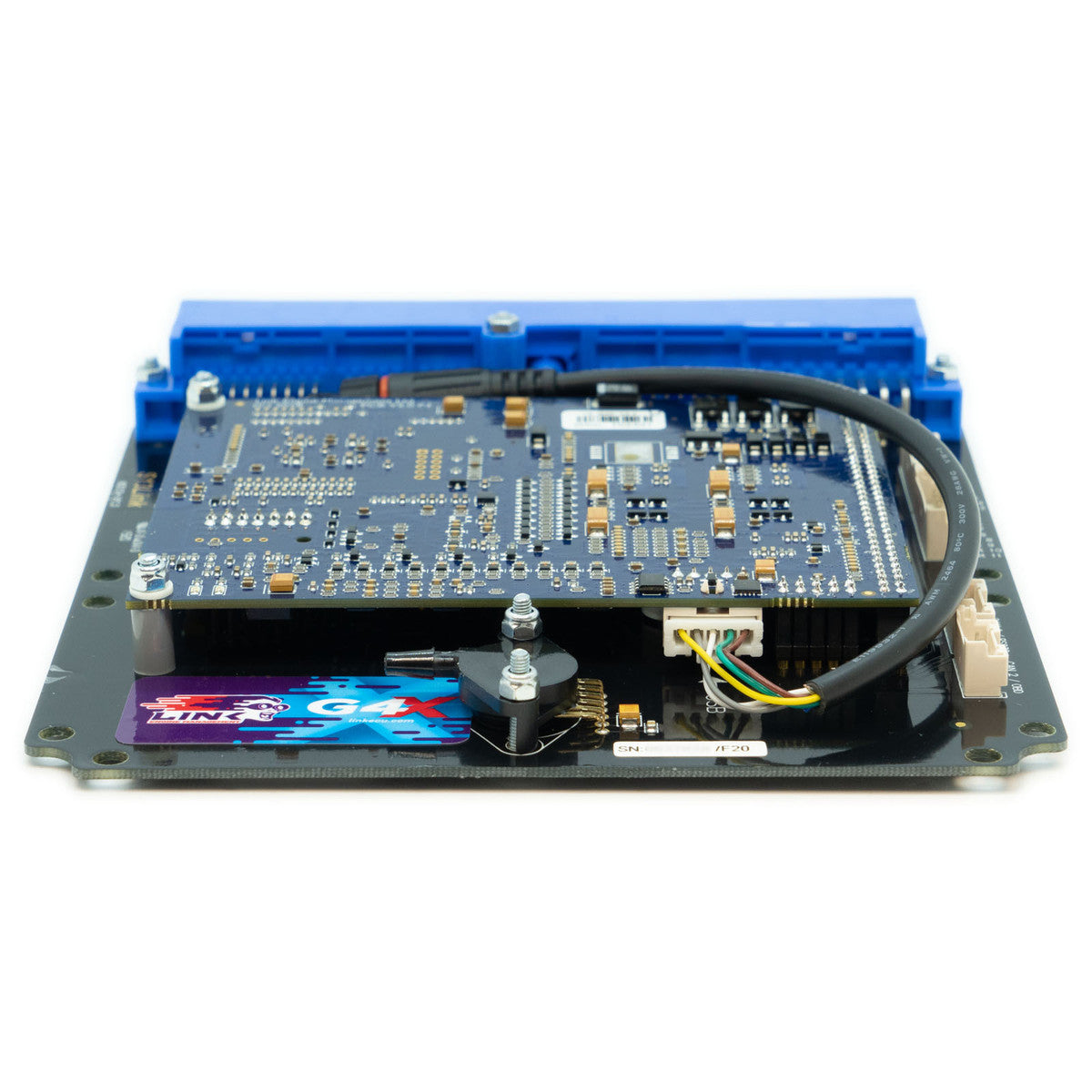

The Link G4X S13Link NS13X PlugIn fits the Nissan S13-14 76 pin. The ECU PCB fits discretely inside the original factory enclosure.

Installation of Link's Nissan S13 G4X ECU is a breeze with no alteration of the factory wiring loom required. A built-in connector (or pins in some models) provides additional inputs and outputs such as oil pressure inputs or anti-lag / logging switches.

Fits models with the 76 pin long blue header plug.

Includes Integrated 4 Bar MAP Sensor.

Need more inputs and outputs?

The XS Expansion Loom offers the ability to add additional inputs & outputs on our range of plug-in ECUs.

Features:

G4X PlugIn Key Features (where applicable)

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering, all OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features - anti-lag, launch, flat shift
  • Continuous barometric correction (onboard)
  • CAN port
  • QuickTune - automated fuel tuning
  • Individual cylinder correction

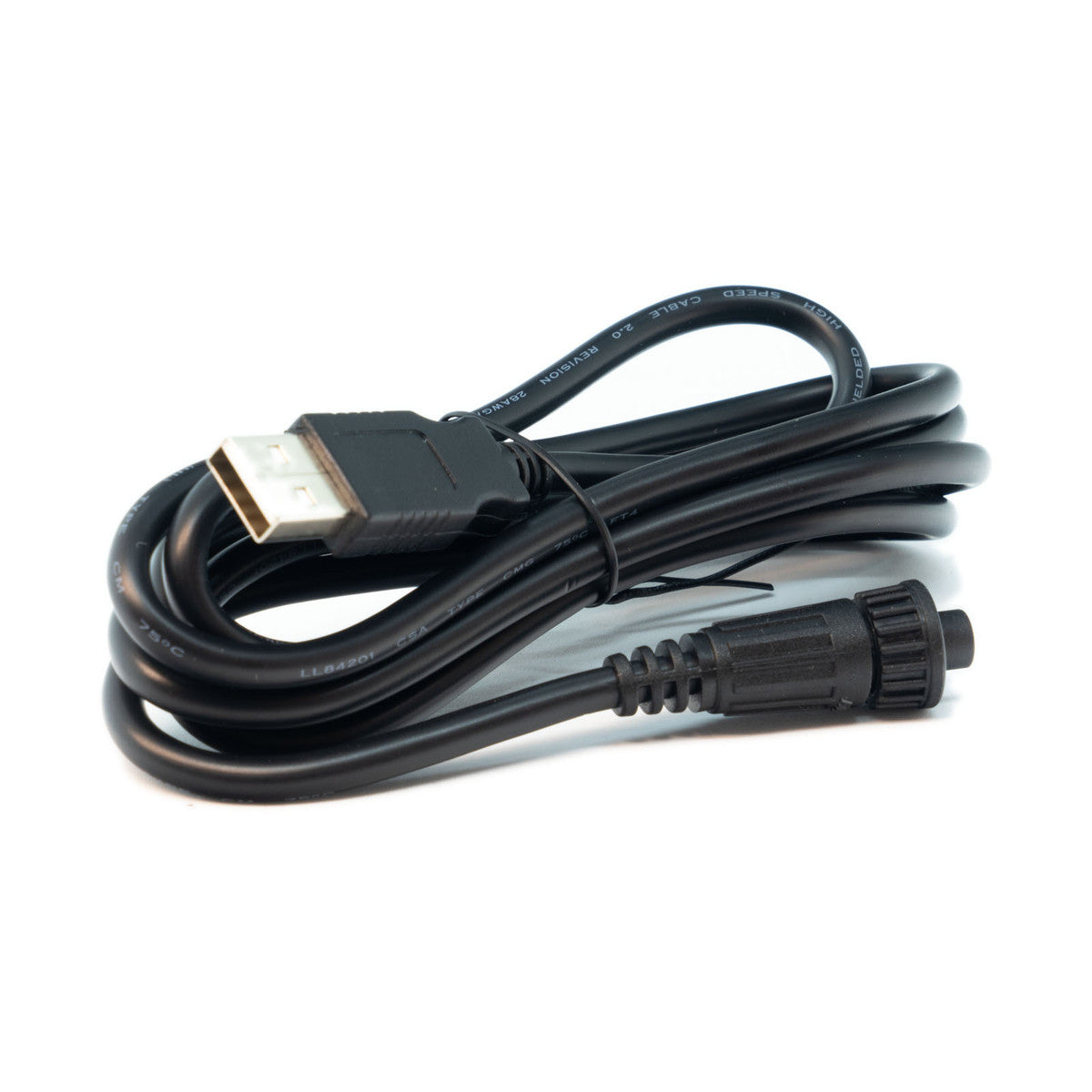

  • USB tuning cable included
  • Stats recording into on-board memory
  • Gear compensations for spark, boost, and fuel
  • Real-time selectable dual fuel, ignition and boost maps
  • Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
  • Boost control referenced to gear, speed or throttle position
  • Up to 512MB data logging capability
  • Staged injection
  • Knock with "windowing"

Download Manual
