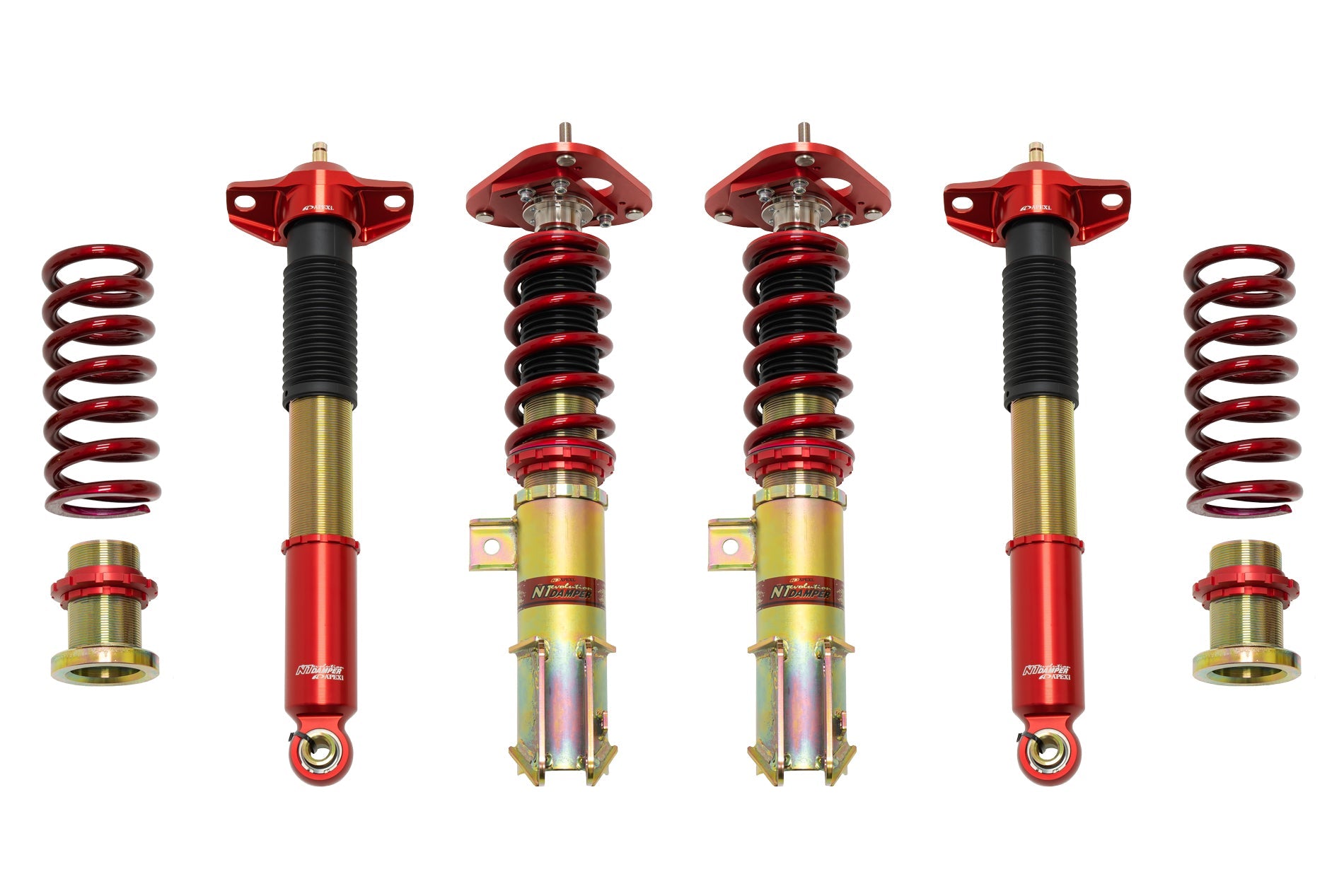

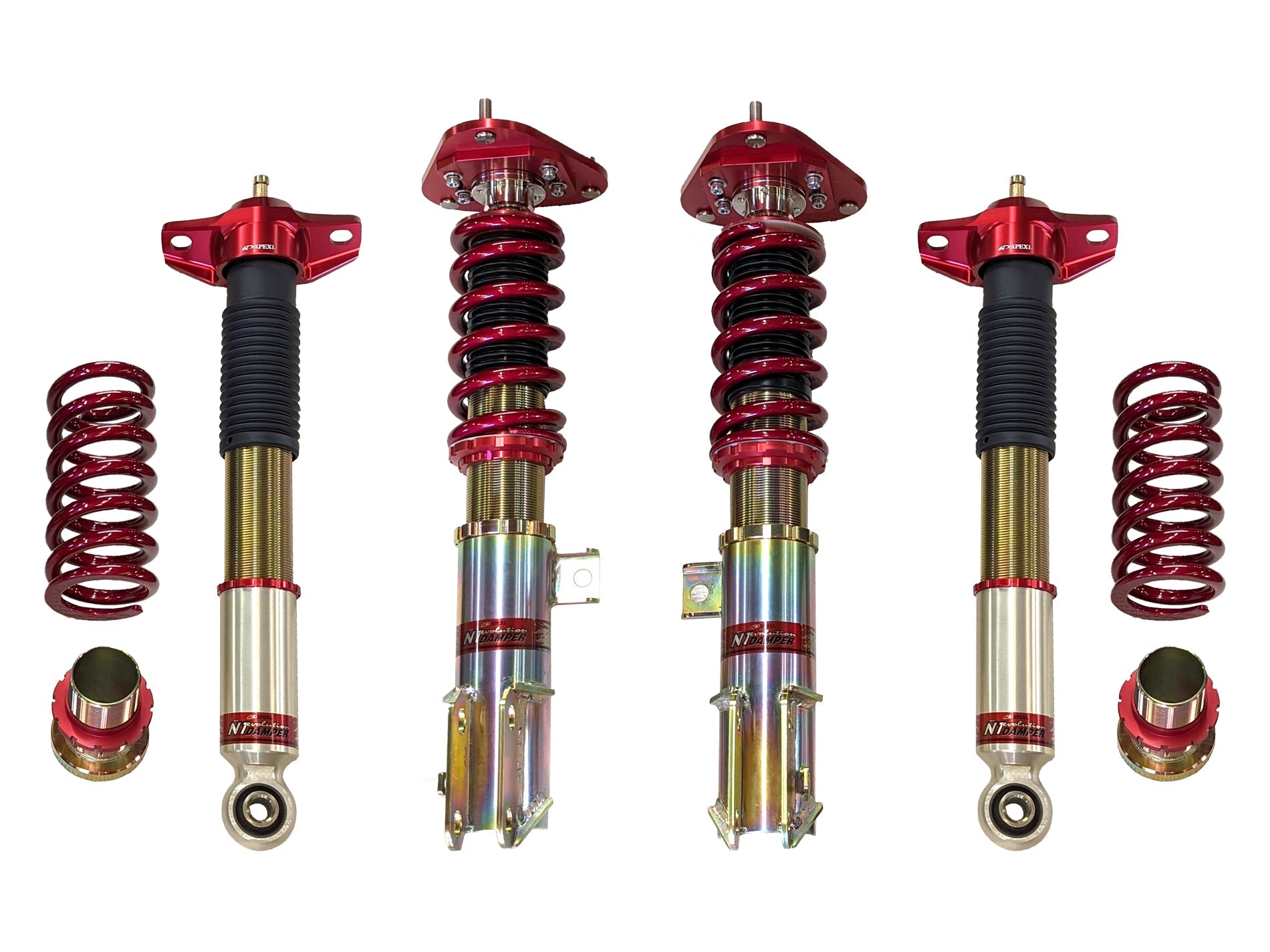

A'PEXi - N1 Evolution Damper - Toyota GR Corolla (2023+)

A'PEXi Web Exclusive (Only available at www.apexi-usa.com)

The N1 Evolution is the newest generation of our track engineered flag ship N1 suspension. All N1 dampers feature large piston, monotube design using a threaded base for height adjustments without compromising shock or spring travel. Every year, we gather incredible amounts of suspension data from our direct involvement in many different racing series. This specialized data goes directly into our sports parts development to provide the customer with the same cutting edge suspension technology we use on all of our race vehicles.

PRODUCT FEATURES:
- 25-Way damping force adjustment to adapt to a variety of driving conditions.
- Monotube design with 46mm. diameter piston.
- Adjustable lower case design that allows ride height to be adjusted without affecting preload.
- Standardized 65mm. (ID) spring allows the use of a wide variety of readily available springs.
- Front strut- type setups include camber adjustment plates that utilize premium quality pillow-ball spherical bearings to minimize deflection, binding, and noise.
- GT race quality damper fluid that can withstand high temperatures and prevent damping force degradation
- 100% Made in Japan, with precision Japanese components
- Overhaul services available

Bolt-On	Yes
Part Number	264CT098 - Rear Lower Adjust Case- Rubber Bushing) 264CTP98 - Rear Lower Adjust Case- Pillow-Ball)
Damper Model	N1 Evolution Damper
Year	2023+
Make	Toyota
Model	GR Corolla
Engine	G16E-GTS
Chassis	MZEAZ12
Piston Diameter	46mm.
Spring: Length / Rate	Front: 7 inch/8KRear: 8 inch/10K
Damper Type	Front: Monotube Full Length Adjustable (Inverted Type)Rear: Monotube Full Length Adjustable (Std. Upright Type)
Damping Force Adjustment	Front: 25 Levels (Bottom Adjustment), Rear: 25 Levels (Top Adjustment)
Damper Camber Adjustment	Front: Yes, Rear: Not applicable
Recommended Height Setting (mm.)	Front: Trim Height- 335mm (-30mm from Stock)Rear: Trim Height- 334mm (-30mm from Stock)
Special Notes	Front- Reversed Camber Adjustment Plate (Adjustable from bottom)Rear- Includes CNC Billet Aluminum Pillow-Ball Upper Mounts
