Wisefab E90 E92 E90M3 E92M3 E81 E82 E82M Front Angle Kit

$2,200.00

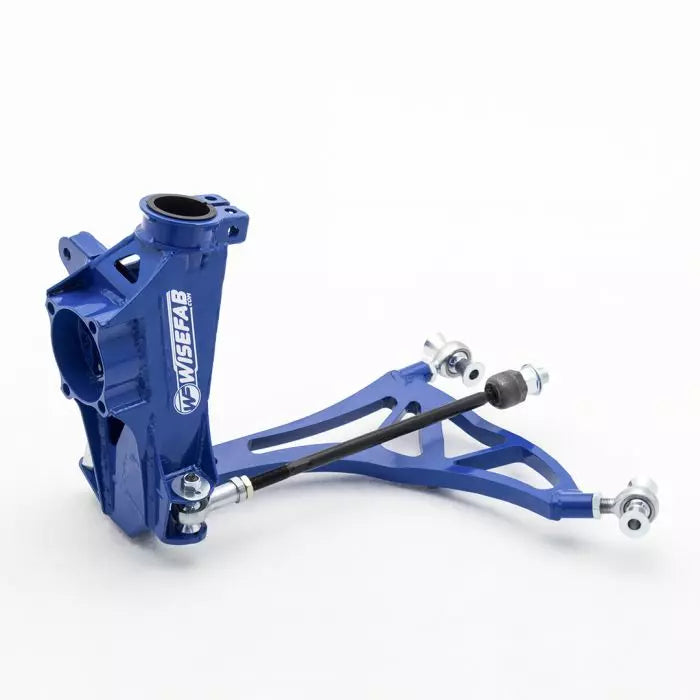

Wisefab BMW e9x lock kit can be fitted on a variety of BMW models. E90, E91, E92, E81, E82, E87, E88 M and nonM. Brackets included to fit M brake caliper. Either M or non-M front coilovers would work with Wisefab E90 knuckle. All the metal components on Wisefab E90 front suspension are from high strength steel, including sheetmetal components, tubes, tube ends and rod end housings. Rod ends and spherical bearings are used, no rubber bushings.

  • 65 degrees of lock, parallel steering.
    You could tune your steering geometry either towards positive or negative Ackerman in just a few minutes even at trackside without messing up an alignment.
    Ackerman adjustment kit included.
  • Adjustable lock stop.
  • One piece lower control arm design.
    Lower links are replaced with one arm. Drifting with higher steering angle the stiffness and packaging would become an issue. Therefore lower one piece arm is used.
  • Higher roll center (RC).
    On Wisefab knuckle, joints are dropped, which brings the front RC up on lowered car, providing higher roll stiffness and letting to remove the front anti roll bar (sway bar) that is quite difficult to package with that high lock angles.
  • Very good camber control and minimal bump steer with high steering angles.
    On drift cars the dynamic camber and bump steer is much more important than static. With our kinematics we have assured that the camber would provide very good front grip and bump steer is minimal at all the range of steering.
  • Steering jacking control.
    During drifting, when steering angle is much bigger, jacking is also bigger, even with the same geometry and it could become a problem. We have changed the geometry that it doesn’t cause any handling issues.
  • Consistent and predictable self-alignment torque.
    Caster is not the only important parameter to provide sufficient self-alignment torque especially at high lock. It’s the combination of different parameters to maintain consistent trail and self-alignment torque. With our setup the steering wheel turns always to the direction of movement and doesn’t get stuck at full lock.
  • Original wheelspeed sensor (ABS sensor) can be used.

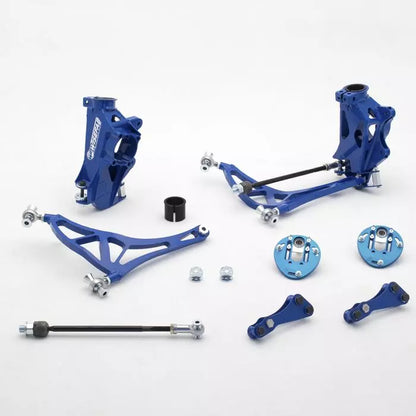

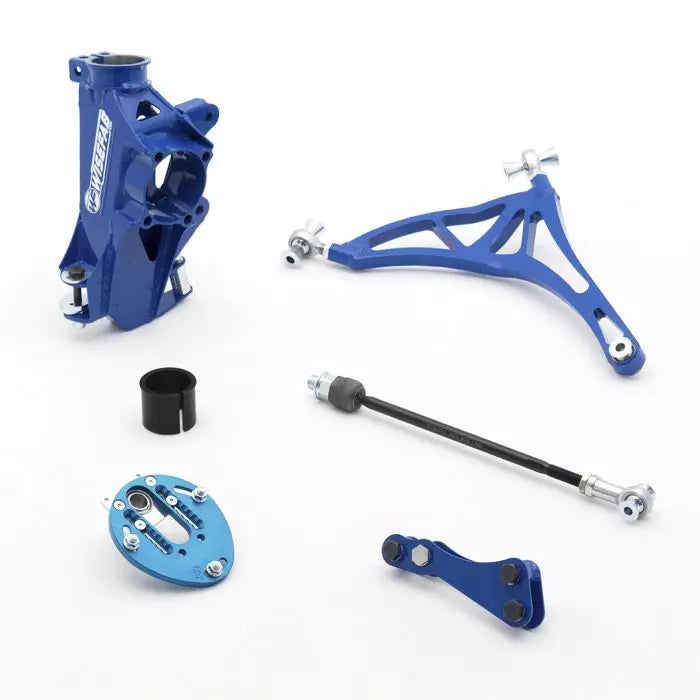

Kit includes:

  • Adjustable coilover upper mounts, Formula Drift compliant.
  • Knuckles with hardware.
  • Lower control arms.
  • Assembled tie rods.
  • Brake adapters for M model brakes.
  • 45mm coilover adapter sleeve.
  • Installation guide.
