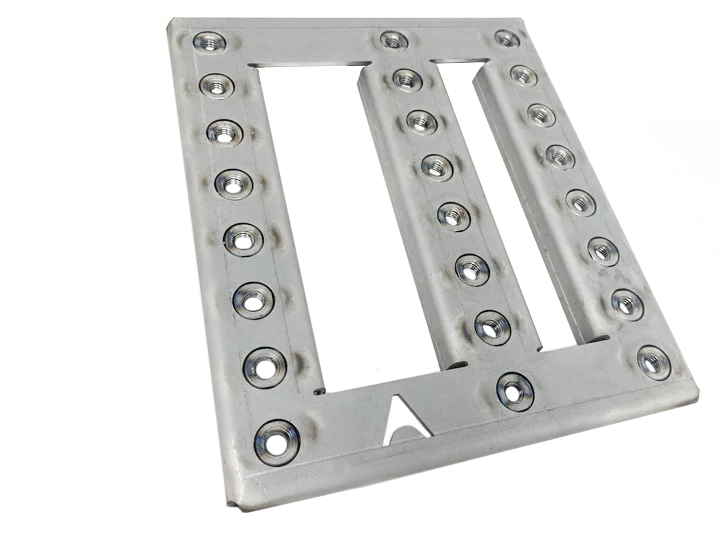

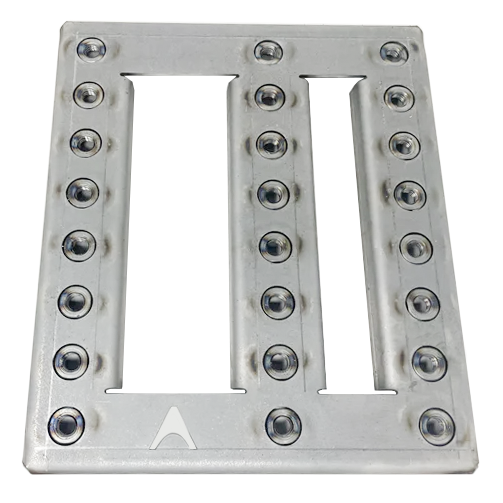

Bracket for Tilton 600 Series Floor Mount Pedals
ALA-TILPBM6UF
Made from .095" steel, with 6 positions of adjustment in 1.0" increments, this is a great time saving solution to mounting these pedals in your racecar. Simply weld to the floor of the car, and attach the pedal box to the mount using M8x1.25 hardware.

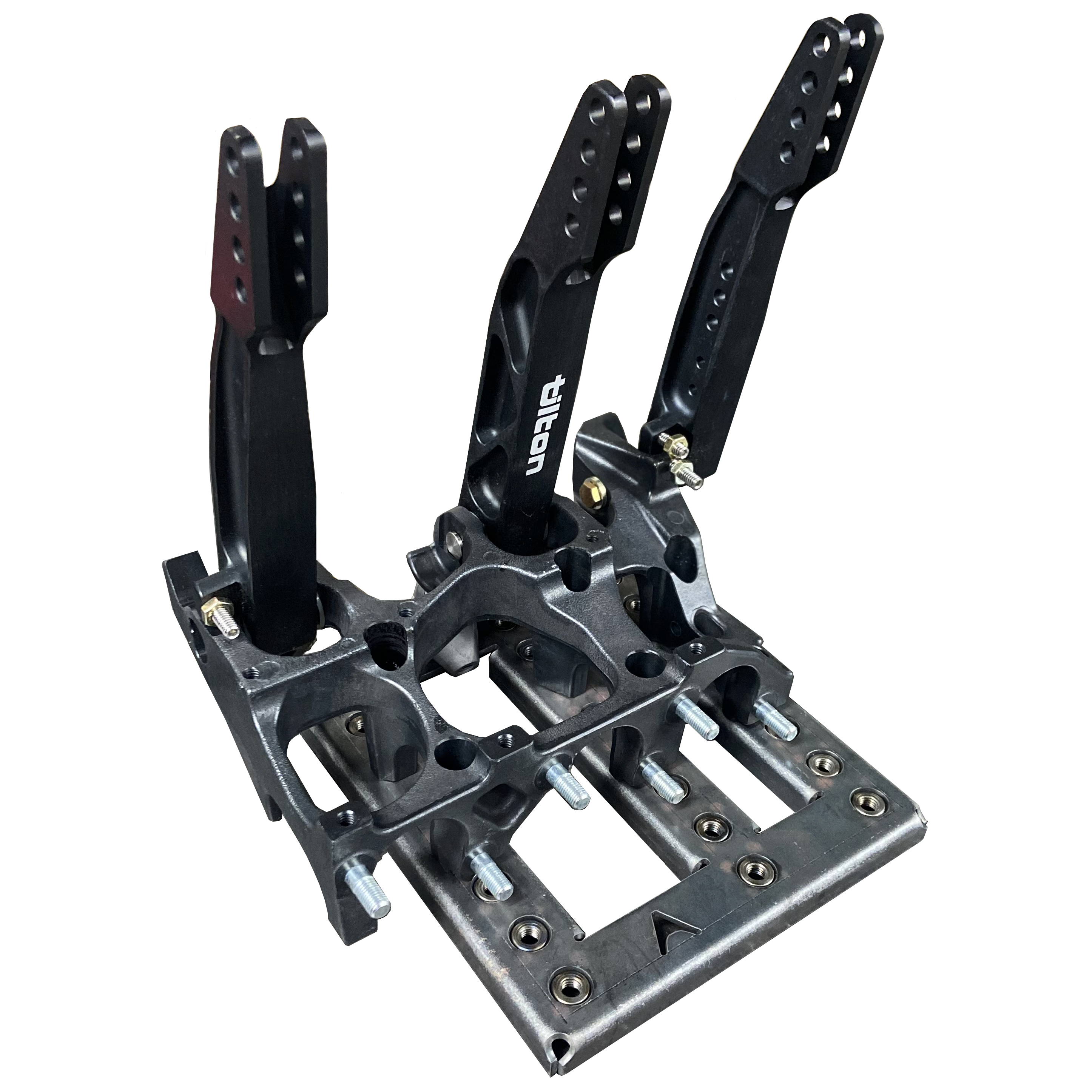

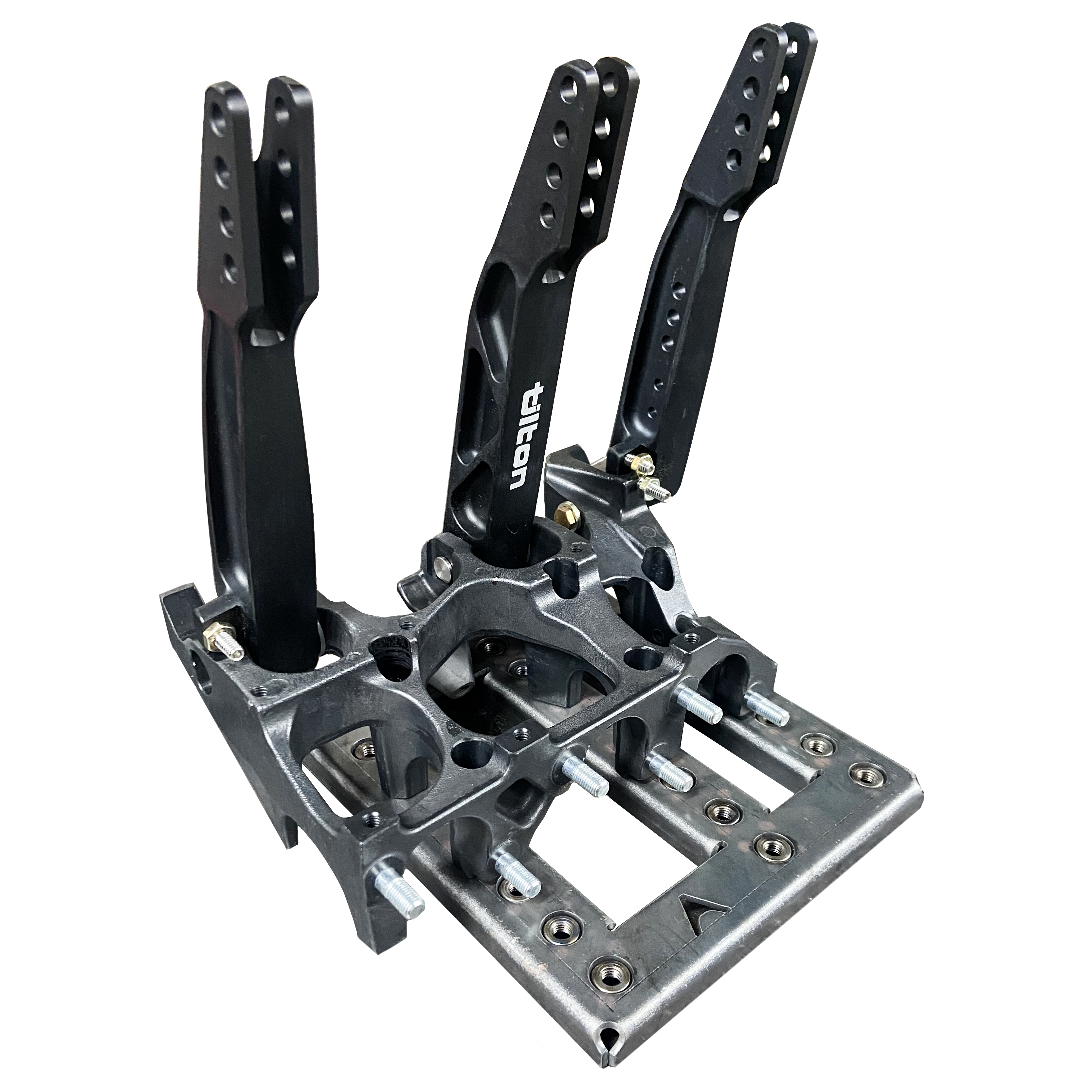

Designed to fit select Tilton 600 Series Floor Mount Pedal Boxes in either 2 or 3 pedal configurations.
7.5" Wide x 8.5" Tall x 0.625" Thick
Note: This mount does not fit all Tilton pedal boxes. See our other product range for other Tilton pedal box mounting solutions.
This part will fit the following 600 series pedal boxes:
- 72-617 -2 Pedal Under Foot brake/ clutch
- 72-618 -2 Pedal under Foot brake/ throttle
- 72-616 -3 Pedal under foot
