WRX Link (V10)-WRX107X ECU

$1,535.00
Brand: LINK ECU
SKU: 225-3000

WRX Link (V10)-WRX107X ECU is backordered. We will ship it separately as soon as possible.

Subaru-WRX/STI 06-07 V10 Ecu By Link

The Link G4X WRXLink (07) WRX107X PlugIn fits the Subaru WRX & STI V10 06-07 with 2.5L engine featuring variable cam control and electronic throttle. There are two different Subaru Impreza WRX V10 ECUs available, please check the manual available for download on the features page to ensure you pick the correct version for your vehicle.

Installation of Link's Subaru WRX107X ECU is a breeze with no alteration of the factory wiring loom required. A built-in connector (or pins in some models) provides additional inputs and outputs such as oil pressure inputs or anti-lag / logging switches.

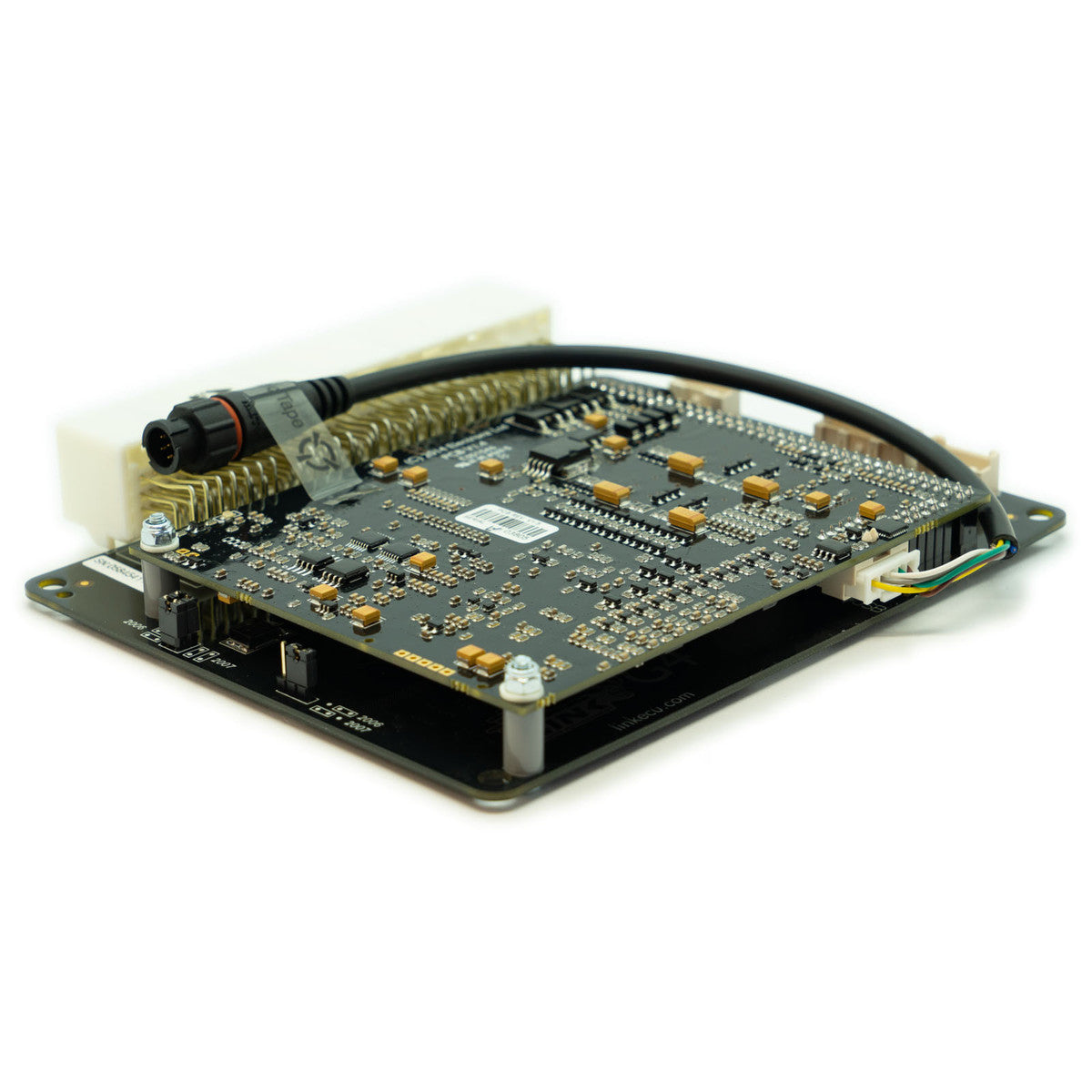

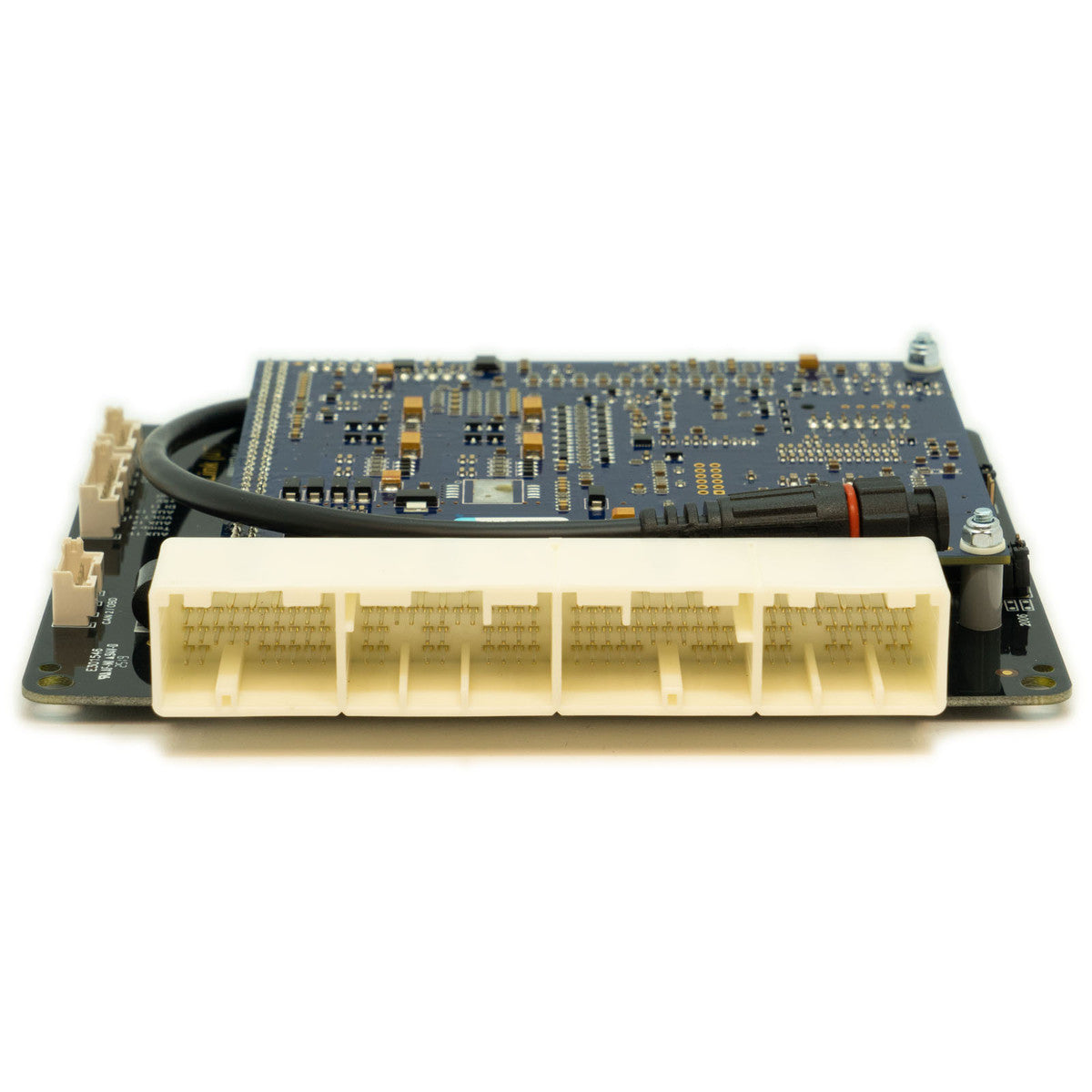

The ECU PCB fits discretely inside the original factory enclosure.

Factory features are supported - see Features for any exceptions.

Includes e-throttle and variable cam control.

MAP Sensor not included.

Need more inputs and outputs?

The XS Expansion Loom offers the ability to add additional inputs & outputs on our range of plug-in ECUs.

Features:

G4X PlugIn Key Features (where applicable)

  • Up to 6D fuel and ignition mapping
  • Precision closed loop cam control (four cam, independent control)
  • Sequential fuel delivery
  • Digital triggering, all OEM patterns
  • OEM idle hardware supported
  • 5D boost control with three switchable tables
  • Motorsport features - anti-lag, launch, flat shift
  • Continuous barometric correction (onboard)
  • CAN port
  • QuickTune - automated fuel tuning
  • Individual cylinder correction
  • USB tuning cable included
  • Stats recording into on-board memory
  • Gear compensations for spark, boost, and fuel
  • Real-time selectable dual fuel, ignition and boost maps
  • Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
  • Boost control referenced to gear, speed or throttle position
  • Up to 512MB data logging capability
  • Staged injection
  • Knock with "windowing"

Download Manual
