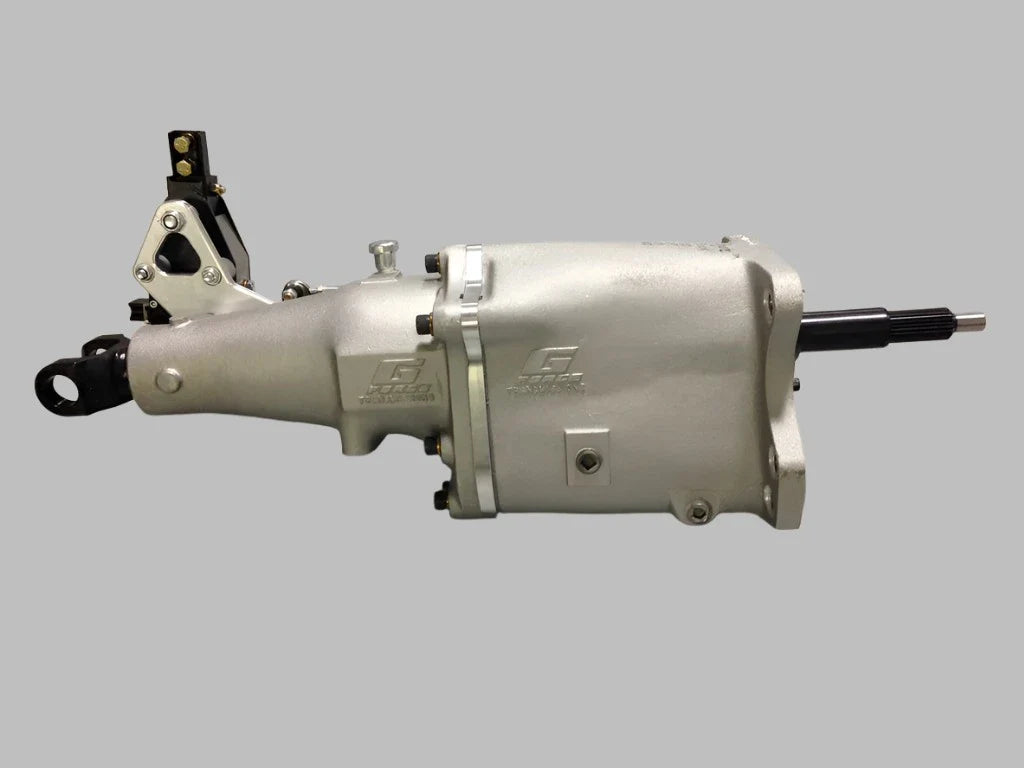

GForce G101a DogBox 4 Speed Transmission

The G-Force G101a is absolutely the end of the line in terms of absolute strength and performance from a 4 speed racing transmission. With its single rail and internally shifted design no other transmission offers the GSR’s uniqueness and versatility. Like the GF4A, the G101a offers both a dual bearing center support and an integrated mid plate. Similarly, the GSR offers an internal oil pump of its own that is very similar to the GF4A’s, but unique to the GSR nonetheless. However, an additional feature found on the G101a is its internal shifting mechanism.

Please Read

G Force G101a dog box have an output shaft that is *32 spline to handle maximum power transfer, G101a Dogbox transmission require a Hardened slip yoke for the front of your drive-shaft you are running. You can also purchase this "Hardened Slip Yoke" direct from us, the additional cost is $280.00

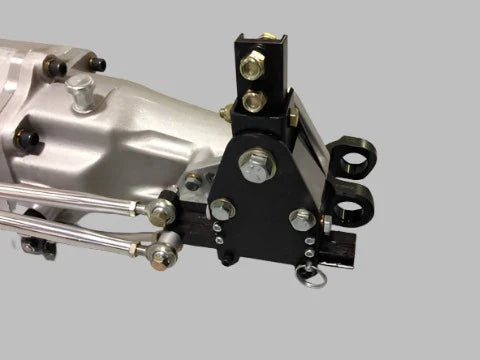

G101A Shifter Setback Options:

(THIS IS MEASURED FROM FACE OF TRANSMISSION BACK TO CENTER OF SHIFTER ASSEMBLY)

• G Force offers you ANY shifter setback you desire
• 19.5" , 21.5"  23.5'' or 25.5" inches

G Force G101A CUSTOM Input Shafts:

(THESE ARE ADDITIONAL $495)

• 10 spline x 1.125 diameter 6.660" length
• 10 spline x 1.375 diameter x 6.660" length DRAG RACING
  14 spline 2JZ x 1.125" diameter x length (LONG input *Used with Toyota V160 style Bell Housing*)
• 24 spline RB/SR
• 26 spline RX7 series

Please message us HERE for a custom quote.

Lead time can take up to 4-8 weeks for all of our hand built G101a Transmissions.

*International Clients email us for current shipping Quote!

 Please message us HERE for a custom shipping quote.
