Link CAN Keypad -12 button

$400.00

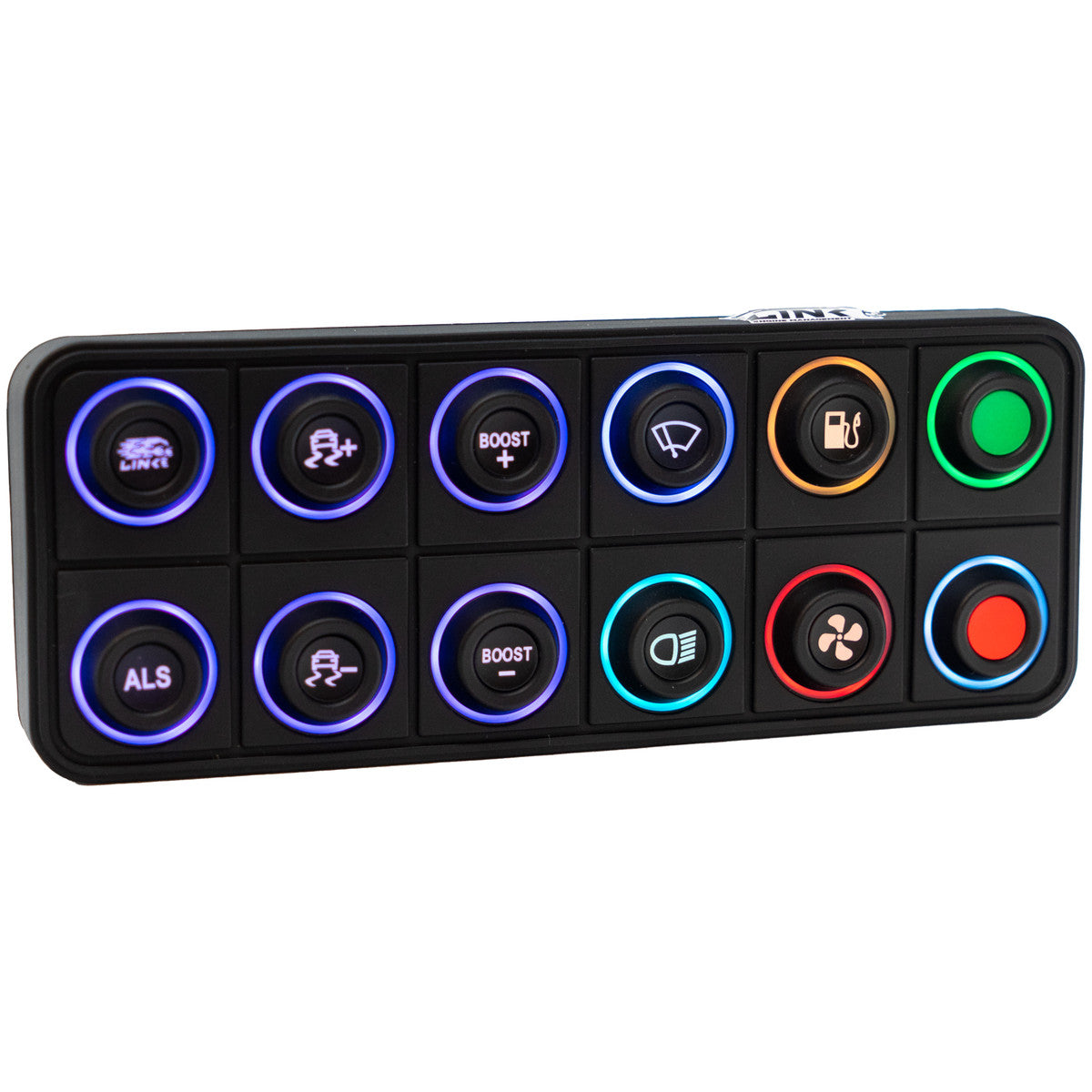

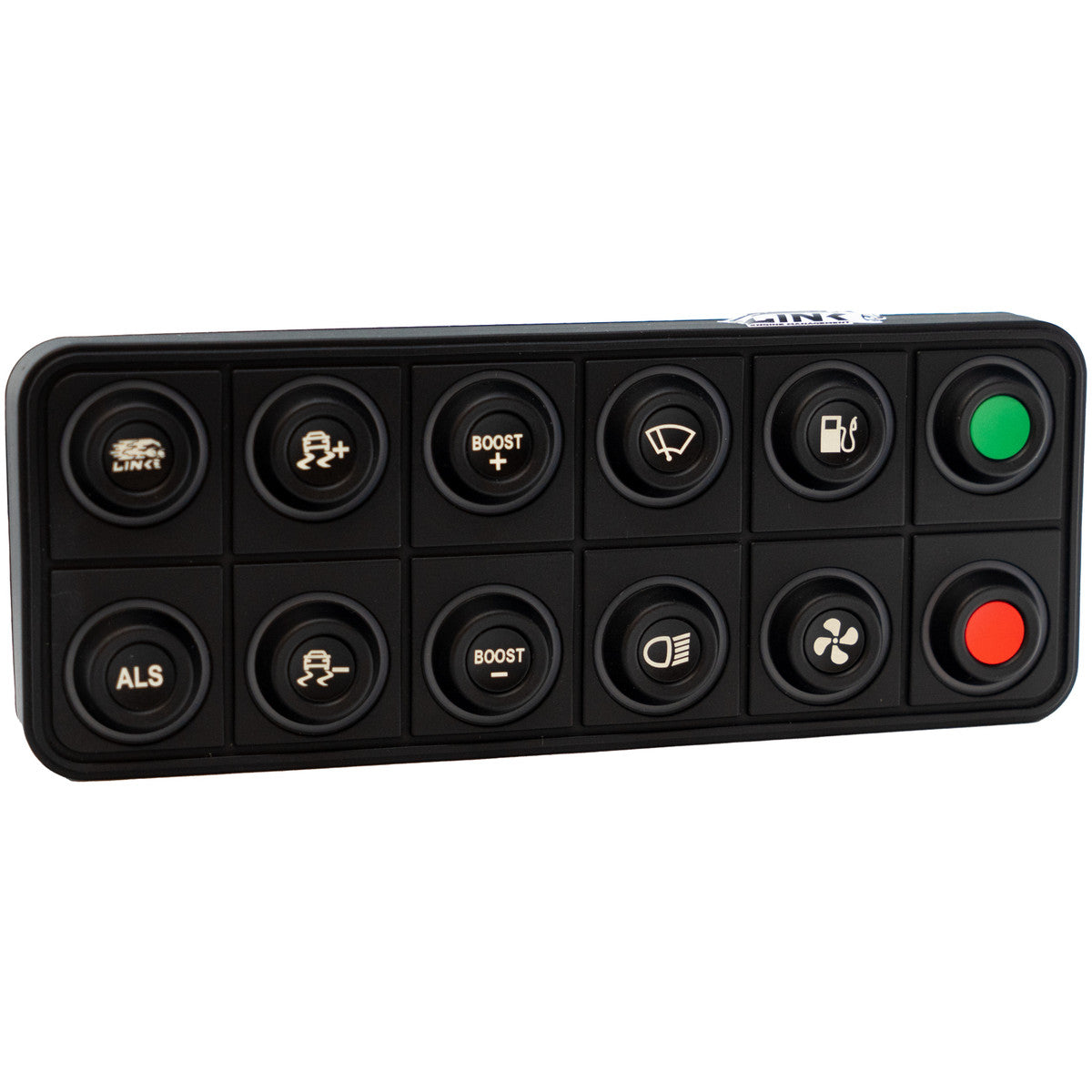

Rugged 12 key CAN Keypad with interchangeable 15mm inserts (SOLD HERE).

Custom button inserts and configurable RGB indicator rings per button allow for extremely flexible set-ups.
The keypad is designed for ultimate reliability - IP67/IP69K water and dust resistant, -40 to +70 operating temperature range, UV 400hrs, salt spray resistant and switches rated to 3 million operations.
Can be installed both inside and outside, perfect for street, track and off-road use.


Note: Keypad ships with empty button inserts, inserts need to be selected and purchased individually. 1 x Link ECU Logo Button Insert included in box loose.

*Keypads can be purchased here*



Features:
CAN Configurable with G4X PC Link – Change LED backlight, individual button indicator ring color, programmable to show change in status, flashing option, multiple modes including momentary, latched and toggle.
Customizable Button Inserts – The replacement system for individual inserts makes modifying the keypad layout simple and economical.
IP67/IP69K Waterproof rating – Guaranteed to be dust tight
and sealed against water immersion to a depth of 1 meter for up
to 1 hour. The IP69K rating provides protection against high
pressure water at high temperature spray downs.
Compatible with all G4X ECU’s.


Box Contents:
1 x 12 Button CAN Keypad
1 x DTM4 Mating Connector Kit
1 x Link Sticker
1 x Keypad Button Insert – Link Logo
