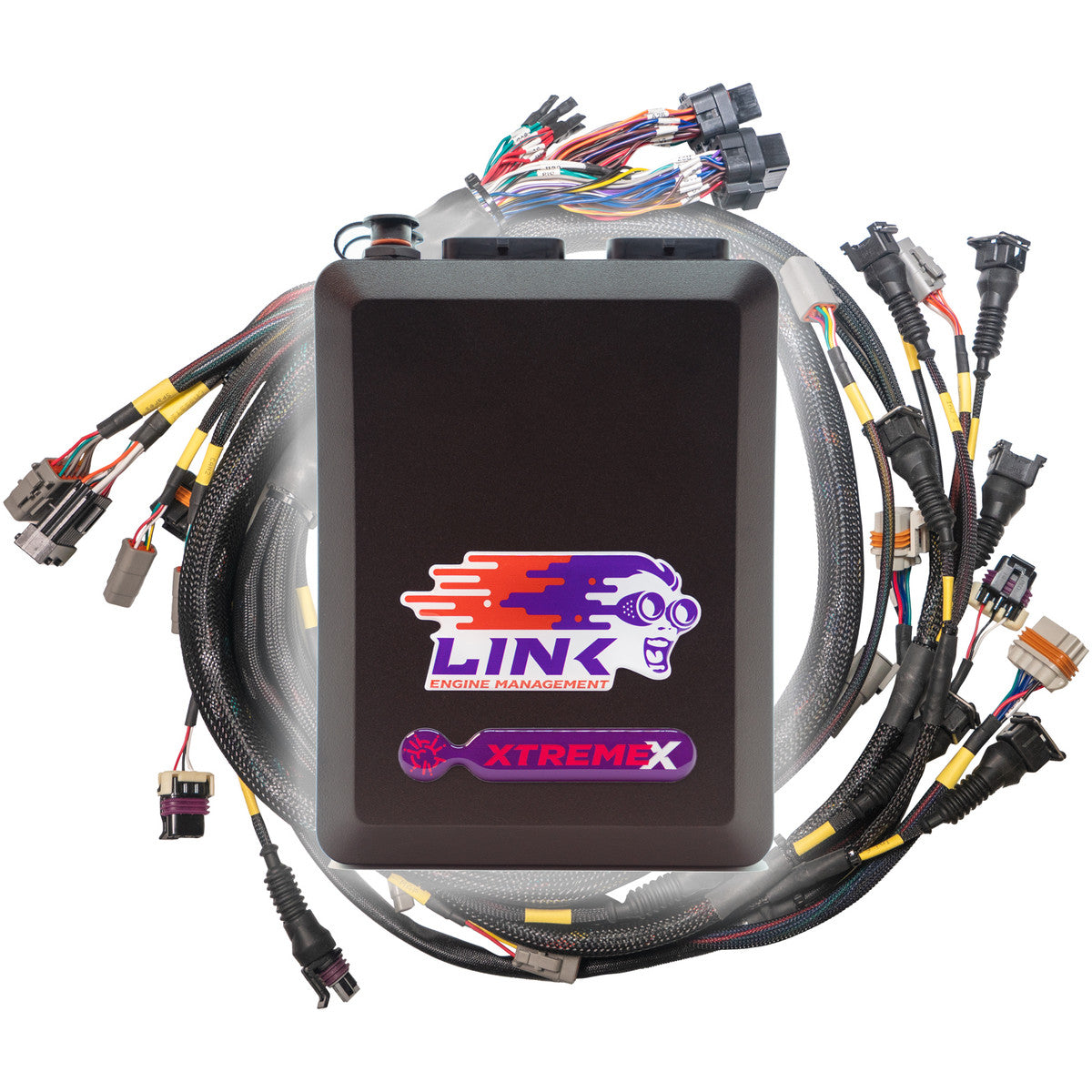

LINK G4X XtremeX ECU + Terminated LS Engine Harness

By link

The quickest, easiest, tidiest and most cost-effective way to connect a Link ECU to your Drive-by-Wire/E-Throttle LS V8 engine.

Bundle Includes:

  • G4X XtremeX ECU (8 x Injector and 8 x Ignition Drives). Available Here

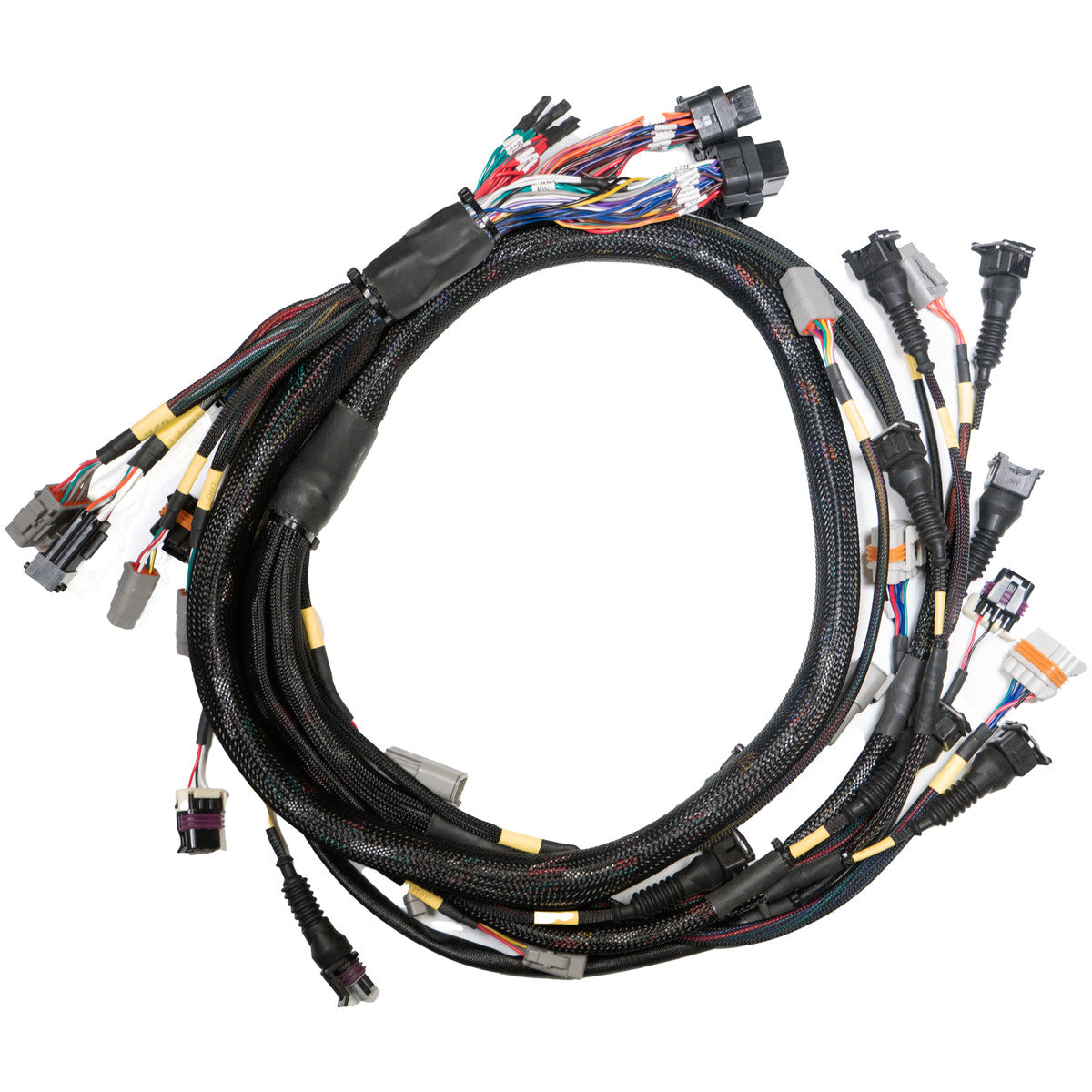

  • Terminated Engine Harness for Gen3/4 LS Based Engines (Available Here)
  • LS DBW Adapter Loom

*Notes for use with Gen 4 Engines

  • A cam sensor harness extension will be needed to accommodate the Gen 4 LS front mounted cam sensor. 101-0307
  • A small modification is required to the crank sensor connector. See “crank connector” section in installation manual for details.
  • Injector Connector Adapters to USCar connector will be required for most Gen 4 Engines. Check your injector connector to confirm. Use Link PN 101-0287
  • To support Gen 4 factory knock sensors you will require the Link LS Gen 4 Knock Adapter Loom (PN 101-0306)
  • To support the factory Gen 4 MAP sensor you will require a Link LS Map Adapter Loom plus a Gen 3 to Gen 4 MAP sensor extension harness (alternatively you can use a Link MAP sensor which is directly supported by the harness) (101-0302)
