ALARIA Electric Power Steering Pump Kit

We've been selling these pieces individually for some time now, but wanted to streamline the purchase for those looking to get all three. We've also included a 2-pin Anderson Multipole connector kit, and the option of an Allstar Performance Reservoir.

Kit includes:

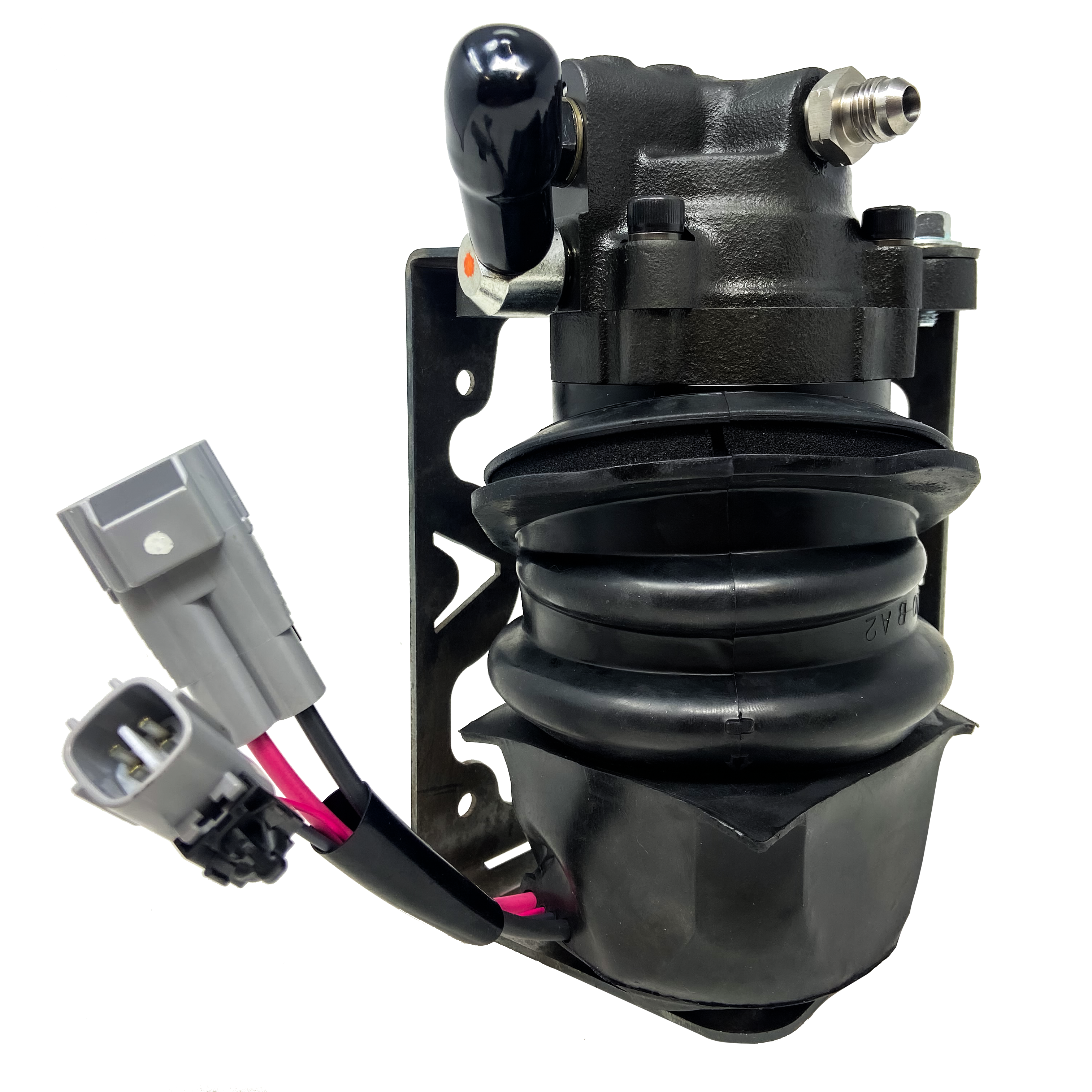

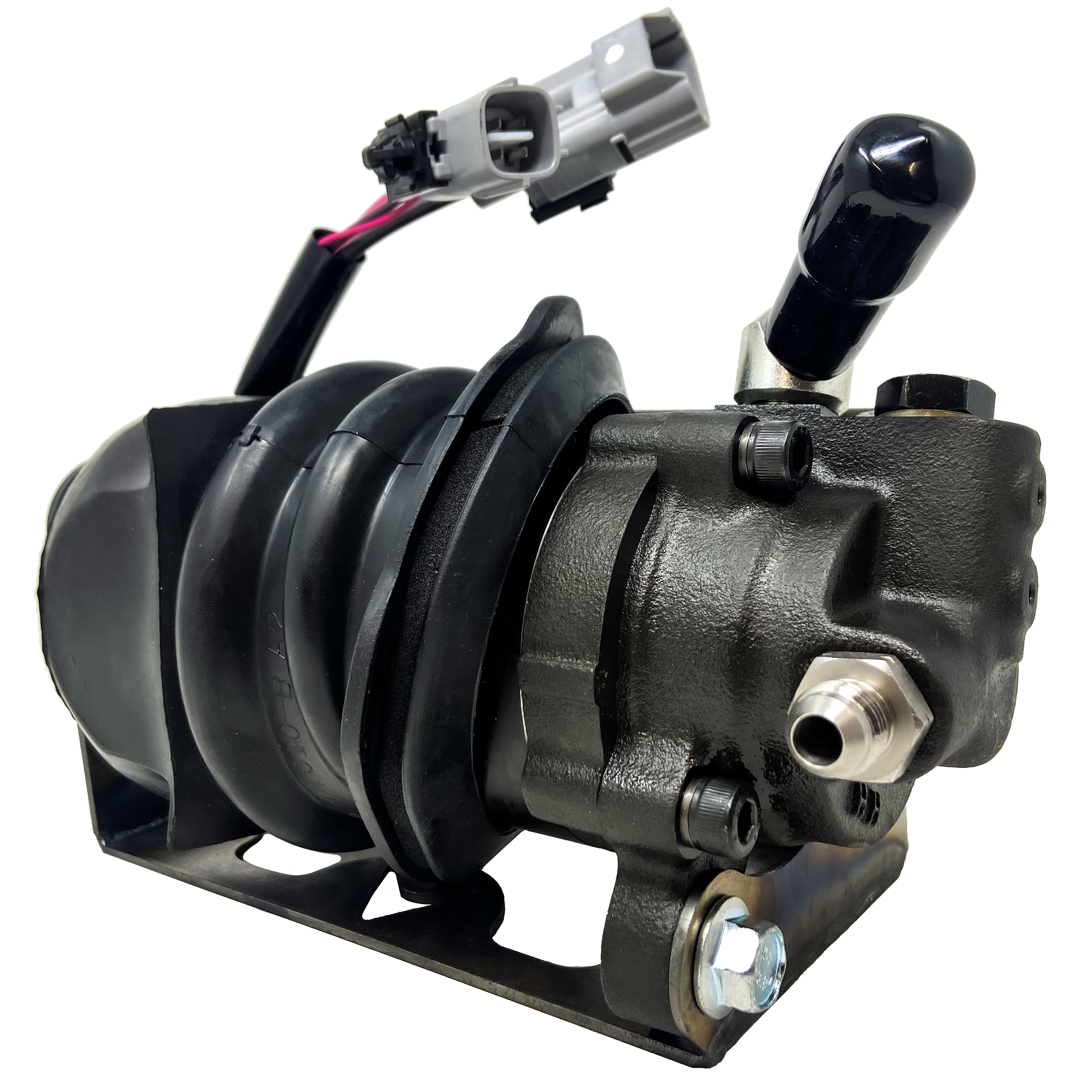

• Genuine Toyota SW20 MR2 Power Steering Pump

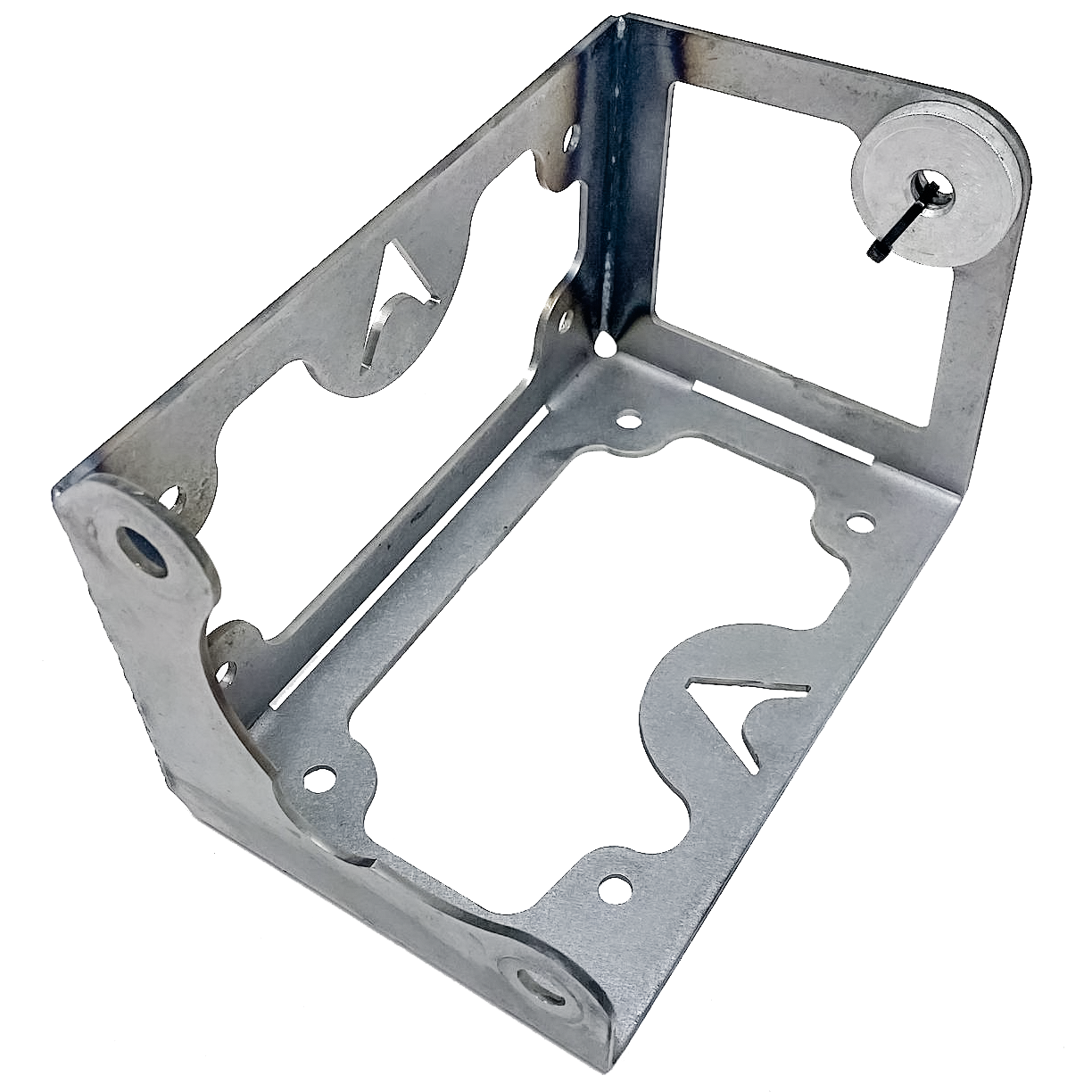

• Alaria Technical Mounting Bracket

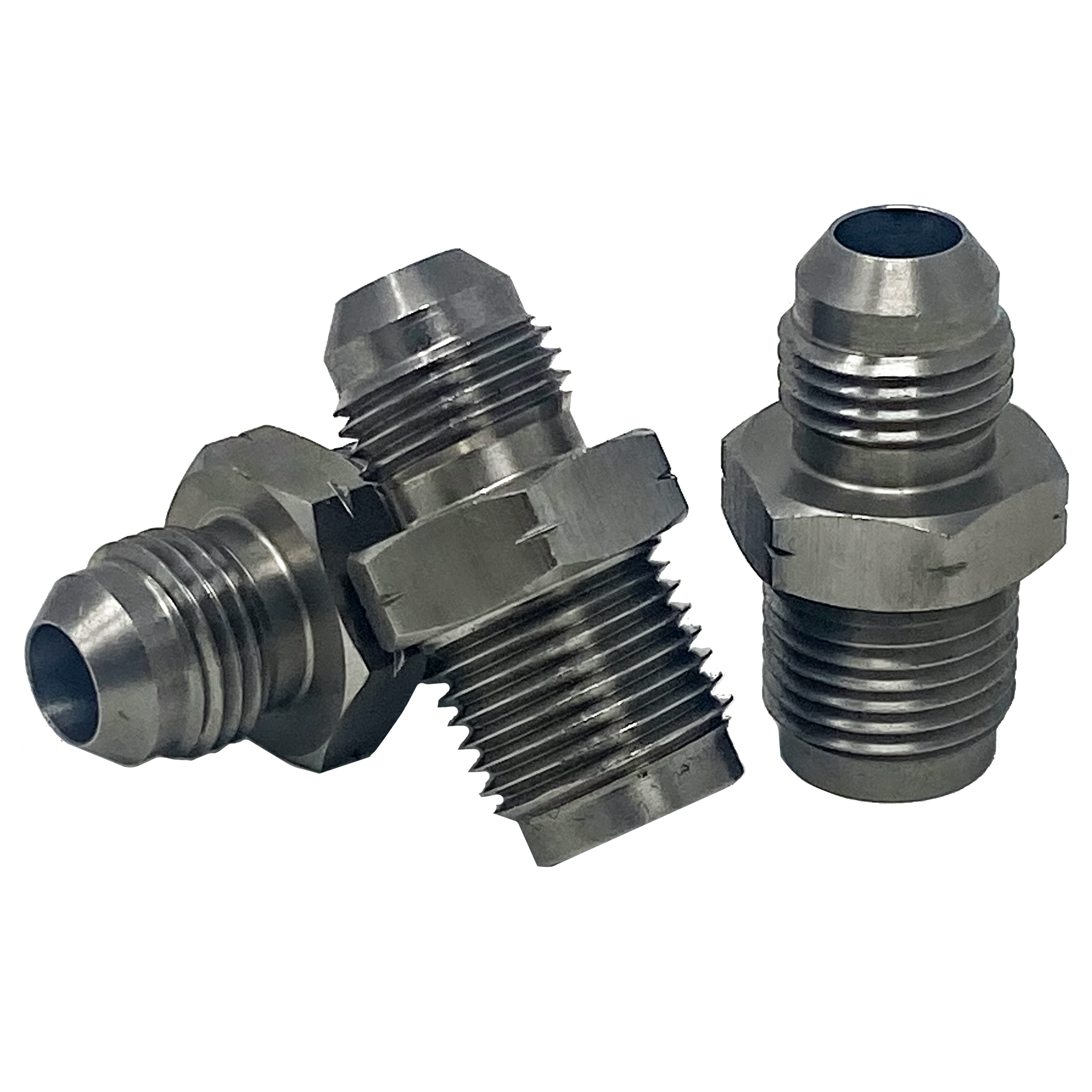

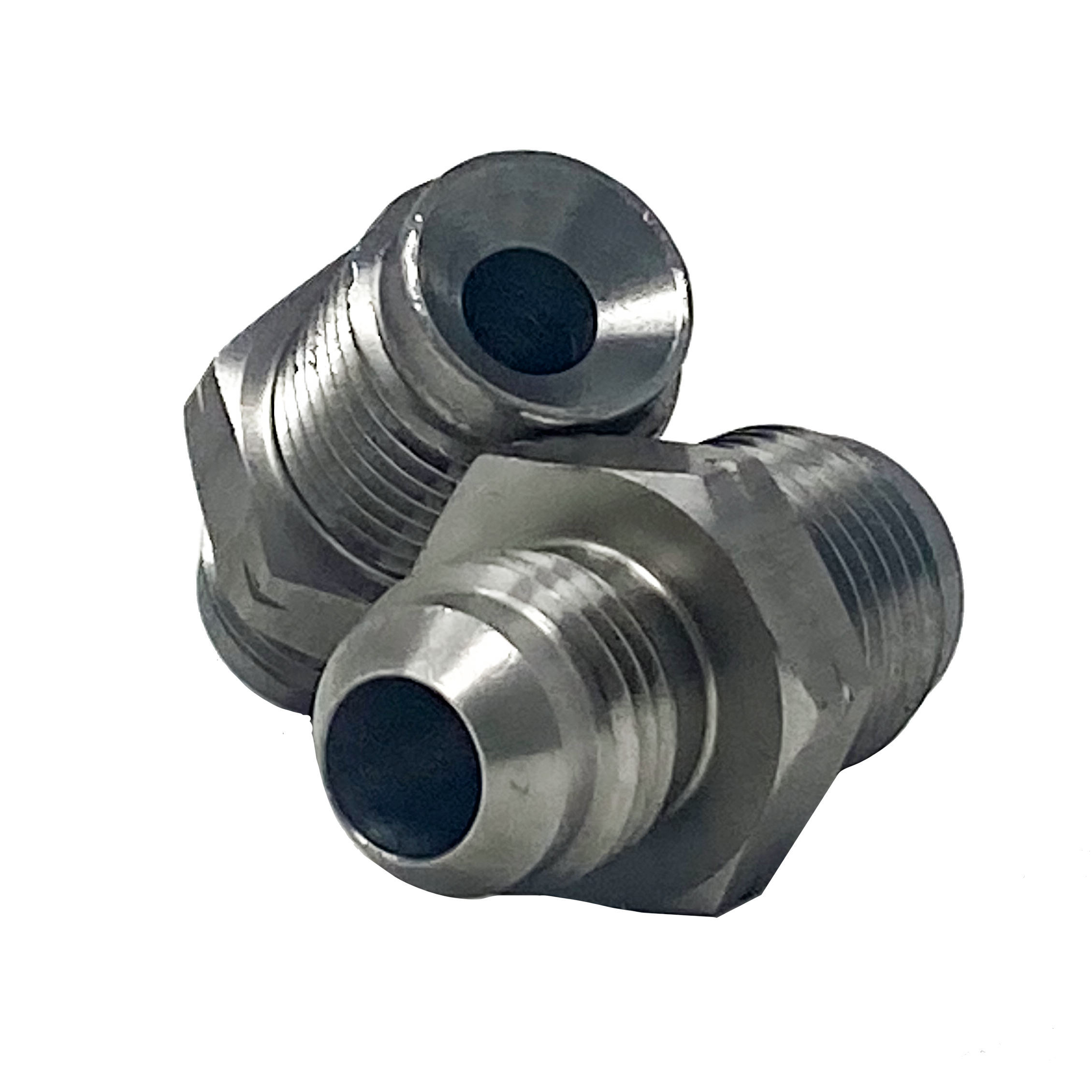

• Pump Outlet Fitting
• Electrical connector
• Reservoir (Optional)

Frequently asked questions:

Q: How much pressure do the pumps make?

A: Out of the box, we’ve seen the pumps generate 900-1000 psi, however there is a jam nut and adjustment screw on the pump housing, we’ve found that 1.5-2 turns will return 12-1300psi of output pressure.  Some data logs on Pro Drift cars have shown as much as 1500psi.

Q: How much current do the pumps draw, and how should they be wired

A: Testing has shown that the pumps can draw 70-80 amps when under maximum load, as such the wiring will need to be robust, we usually recommend the use of a high current relay, or manually resettable circuit breaker that is accessible from the drivers location.

Q: Do I need to use the smaller wires and connector for anything?

A: No. Toyota used them to control the pump via an external ecu dedicated solely to power steering, all that is required for the pump to work is the heavy gauge power and ground connections.

Q: How much noise does the system make?

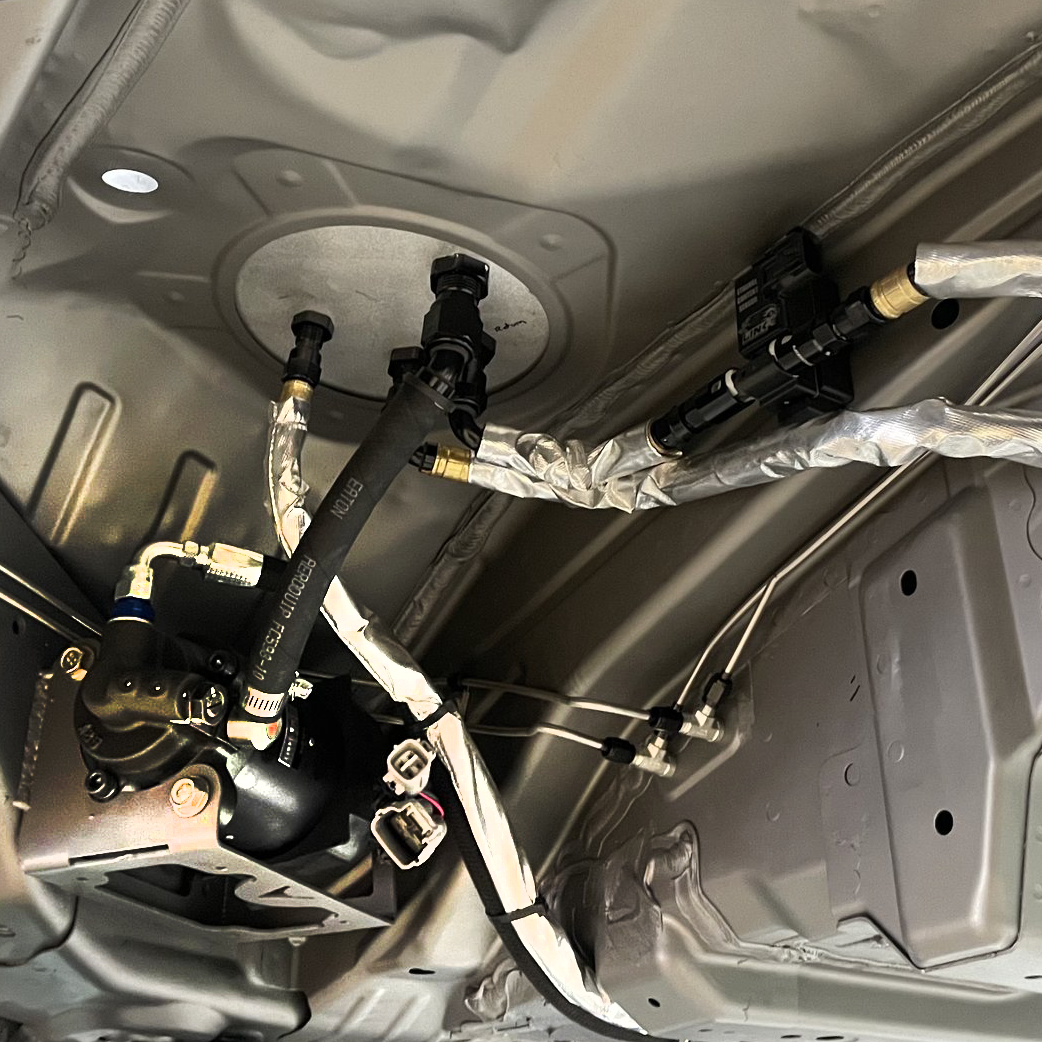

A: The pumps are not overly loud, but certainly there is a noticeable amount of noise coming from them. We recommend isolating the mounting bracket from the chassis if noise is a concern, and keeping the pump out of the vehicle cabin to keep noise and vibration levels to a minimum.

Q: Can I rotate the inlet fitting to suit my chosen location better?

A: NO. If you rotate the large inlet fitting, it will leak and you will not be able to make it stop. Consider yourself warned. We’ve tried it, other people have tried it, it doesn’t work.
